Indicators And Terminals

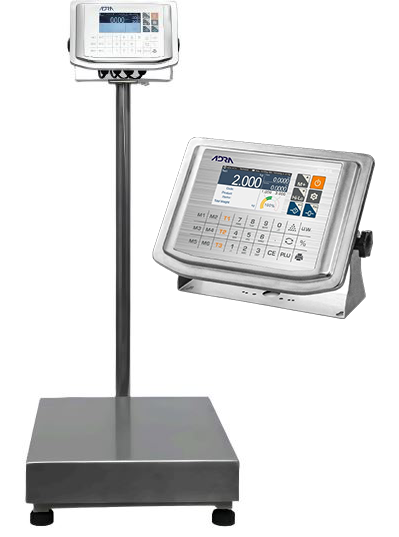

APP/APS SERIES WEIGHING INDICATORS

Features

4.3-inch color display with graphic interface
The Maximum storage 999 PLU, which can quickly called by scanning
Support multi-language
Multi-user permission management
Flexible positioning, can be placed on the table or wall use
Standard RJ45 network communication, data can be uploaded/sent via Ethemet
Standard USB storage, you can import/export data via U disk
Standard RS232 interface can be connected to PC or printer
Background management software: with product management, customized print format, Report management, online update and other functions

Working Mode
  • Weighing
  • Check Weighing

  • Percent Weighing
  • Parts Counting
Tare Mode
  • Restore Tare
  • Preset Tare
Business Meeting
Business Meeting
Technical Data

Display: 4.3 inch color LCD display, resolution 480x 272 px
Power: AC adapter (100~240VAC/12V2500mA), rechargeable battery (lithium batteries 7.4V/5200mAh).
Memory: 999 PLU and 30,000 weighing data
Operation temperature: -10 oC/40 oC
Interface: RS232x1, USB2.O x1, RJ45x1, Loadcellxl
Keyboard: 33 membrane keys

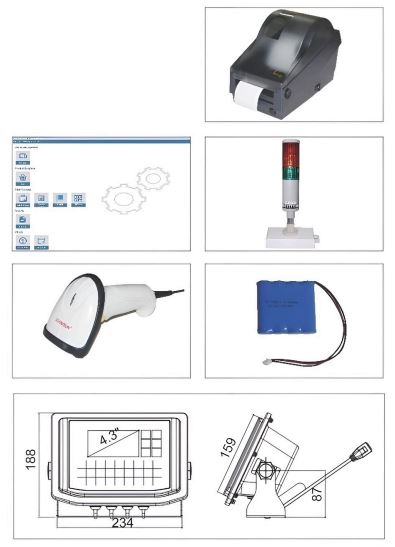

Accessories
  • Bluetooth 5.0 can transfer data to PC or Bluetooth-tnnfigured device
  • Label printer
  • Ticket printer
  • 3 color light tower
  • Scanner

Standard

Optional

Model APP/APS
Housing Stainless steel 304
Dimensions 270x188x166mm
Net weight 2.5kg
nmax. 7500 for approved, 30000 for none approved
Load cell input resistance 43~1600 ohms
Load cell excitation voltage 5VDC
Vmin(only for approval) 1.5uv
Cable length 461 m/mm2
Load cell connector 5 pin
